jQuery时间轴插件的使用方法

2015-08-01 15:49:15 来源:www.45fan.com 【

jQuery时间轴插件的使用方法

这个时间轴是工作上用到的,自己写了一个, qq空间有时间轴的控件, 百度文库也有时间轴的控件;

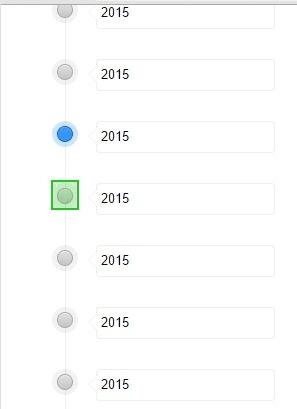

百度的时间轴大概是这样的:

jQuery时间轴插件的使用方法

用户点击对应的锚链接, 那个三角会滚动, 然后左侧的界面也会滚动;

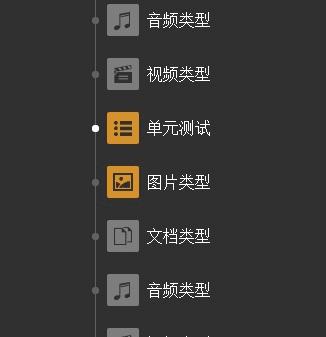

实际的效果如下图,用户点击左侧的按钮或者右侧的input,滚动条都会主动滚动, 这里有个小技巧就是用after和before伪类生成三角形, 用户点击按钮的滚动效果直接用jq的animate方法:

jQuery时间轴插件的使用方法

<!--
//设置内容;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1111},{"name":2222}]}}' ) ;

//设置内容, 对应的item对象如果active为true为激活态;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1000},{"name":1111},{"name":2222},{"name":3333,"active":true}]}}' ) ;

//设置某个第n个位置的item;
window.onWebMessage('{"type":"setItem","data":[2,{ "name" : "add-item"}]}');

//激活第三个锚链接为选中态;
window.onWebMessage( '{"type":"active","data":2}' )

//获取目前的数据:
window.onWebMessage( '{"type":"getItem"}' );
-->

<html>
 <head>
  <meta charset="utf-8" />
  <script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
 </head>
 <style>
  /*初始的reset样式*/
  *{
   margin:0;
   padding:0;
  }
  .time-line-wrap{
   position: relative;
   width: 400px;
   margin:0 auto;
  }
  ul{
   list-style: none;
  }
  body,html{
   height: 100%;
  }
  body{
   -webkit-user-select: none;
   -moz-user-select: none;
   -ms-user-select: none;
   user-select: none;
  }


  /*样式开始*/
  .scroll-time-line{
   height:100%;
   overflow: hidden;
  }
  .time-line-wrap{
   position: relative;
  }
  .time-line-ul{
   position: relative;
  }
  /**
  时间轴的轴用伪类实现;
  */
  .time-line-ul::before{
   display: block;
   position:absolute;
   content:"";
   height:100%;
   width:1;
   left:27px;
   top:0;
   background: #eee;
  }
  .time-line-ul li{
   padding:14px;
   position: relative;
  }
  .time-line-ul input {
   vertical-align: super;
   border-radius: 4px;
   border:1px solid #eee;
   padding:4px;
   line-height: 22px;
   margin-left:10px;
  }
  /**
  使用after和before伪类实现input前面的三角形;
  */
  .time-line-ul li::before{
   position: absolute;
   content: "";
   display: block;
   top: 21px;
   left: 40px;
   width: 0px;
   height: 0px;
   border: 10px solid rgba(0, 0, 0, 0);
   border-right: 10px solid #EEE;
  }
  .time-line-ul li::after{
   position: absolute;
   content: "";
   display: block;
   top: 21px;
   left: 41px;
   width: 0px;
   height: 0px;
   border: 10px solid rgba(0, 0, 0, 0);
   border-right: 10px solid #fff;
  }
  /**
  默认时间轴锚链接的样式
  */
  .time-line-icon{
   width: 26px;
   height: 28px;
   display: inline-block;
   background: url(http://images0.cnblogs.com/blog2015/497865/201507/131424386411828.png);
  }
  /**
  鼠标移动上来,或者锚链接有active时候的背景图样式
  */
  .time-line-icon.active,.time-line-icon:hover{
   background-position: 0px 28px;
  }
 </style>

 <!--模板,勿删!-->
 <script type="text/tempate" id="li-tpl">
  <% for(var i=0; i<items.length; i++ ) {%>
   <li class="li-<%=i%>">
    <a href="###" class="time-line-icon <% if(items[i].active){ %> <%="active"%> <%}%> "></a>
    <input type="text" value="<%=items[i].name%>"/>
   </li>
  <% } %>
 </script>

 <body>
  <!--
  滚动出现在这个div里面
  -->
  <div class="scroll-time-line">

   <!---
   时间轴相关的html结构
   -->
   <div class="time-line-wrap">
    <ul class="time-line-ul">
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
     <li>
      <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
     </li>
    </ul>
   </div>
   <!---
   时间轴相关的html结构结束
   -->
  </div>
  <script>
   //模板引擎的代码
   (function () {
    //underscore抄的模板引擎;
    var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

    var escapes = {
     "'":  "'",
     '\\':  '\\',
     '\r':  'r',
     '\n':  'n',
     '\t':  't',
     '\u2028': 'u2028',
     '\u2029': 'u2029'
    };

    $.templateSettings = {
     evaluate : /<%([\s\S]+?)%>/g,
     interpolate : /<%=([\s\S]+?)%>/g,
     escape  : /<%-([\s\S]+?)%>/g
    }
    $.template = function(text, data, settings) {
     var render;
     settings = $.extend({}, settings, $.templateSettings);

     // Combine delimiters into one regular expression via alternation.
     var matcher = new RegExp([
      (settings.escape || noMatch).source,
      (settings.interpolate || noMatch).source,
      (settings.evaluate || noMatch).source
     ].join('|') + '|$', 'g');

     // Compile the template source, escaping string literals appropriately.
     var index = 0;
     var source = "__p+='";
     text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
      source += text.slice(index, offset)
        .replace(escaper, function(match) { return '\\' + escapes[match]; });

      if (escape) {
       source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
      }
      if (interpolate) {
       source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
      }
      if (evaluate) {
       source += "';\n" + evaluate + "\n__p+='";
      }
      index = offset + match.length;
      return match;
     });
     source += "';\n";

     // If a variable is not specified, place data values in local scope.
     if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

     source = "var __t,__p='',__j=Array.prototype.join," +
       "print=function(){__p+=__j.call(arguments,'');};\n" +
       source + "return __p;\n";

     try {
      render = new Function(settings.variable || 'obj', '_', source);
     } catch (e) {
      e.source = source;
      throw e;
     }

     if (data) return render(data, _);
     var template = function(data) {
      return render.call(this, data);
     };

     // Provide the compiled function source as a convenience for precompilation.
     template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

     return template;
    };
   })();

   (function( fn ) {

    $( fn.call( $ ,$) );

   })(function ($) {

    $.timeLineSetting = {
     offsetTop : 100
    };
    $.extend($.fn, {
     timeLine : function() {
      $.each(this, function() {

       var _this = this;

       $(this).delegate(".time-line-ul>li", "click", function( ev ) {

        $(".time-line-icon.active").removeClass("active");

        $(this).find(".time-line-icon").addClass("active");

        $(_this).animate({scrollTop: this.offsetTop - $.timeLineSetting.offsetTop},300);

        ev.preventDefault();

       });
      });
     }
    });
   });
   $(function() {
    var compile= $.template( $("#li-tpl").html() || "");

    //与客户端的交互事件;
    var orginalData = {};
    window.onWebMessage = function( msg ) {
     msg = JSON.parse(msg);
     switch( msg.type ) {
      case "setItems" :
       $(".time-line-ul").html( compile(msg.data) );
       //结构化复制;
       orginalData = JSON.parse(JSON.stringify(msg.data));
       break;

      case "setItem" :
       orginalData.items&&orginalData.items.splice(msg.data[0],0,msg.data[1]);
       $(".time-line-ul").html( compile(orginalData) );
       break;

      case "getItem" :
        alert(JSON.stringify( orginalData ));
       break;

      case "active" :
       $(".time-line-icon.active").removeClass("active");
       $(".time-line-ul>li").eq( msg.data).find(".time-line-icon").addClass("active")
       break;

     };

    };

    //启用插件;
    $(".scroll-time-line").timeLine();
   })
  </script>
 </body>
</html>

模板用了underscore,tempate方法挂到了$下, 作为$的工具方法(依赖于jQuery),模板的js代码直接放这里方便一些小项目直接用:

   //模板引擎的代码
   (function () {
    //underscore抄的模板引擎;
    var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

    var escapes = {
     "'":  "'",
     '\\':  '\\',
     '\r':  'r',
     '\n':  'n',
     '\t':  't',
     '\u2028': 'u2028',
     '\u2029': 'u2029'
    };

    $.templateSettings = {
     evaluate : /<%([\s\S]+?)%>/g,
     interpolate : /<%=([\s\S]+?)%>/g,
     escape  : /<%-([\s\S]+?)%>/g
    }
    $.template = function(text, data, settings) {
     var render;
     settings = $.extend({}, settings, $.templateSettings);

     // Combine delimiters into one regular expression via alternation.
     var matcher = new RegExp([
      (settings.escape || noMatch).source,
      (settings.interpolate || noMatch).source,
      (settings.evaluate || noMatch).source
     ].join('|') + '|$', 'g');

     // Compile the template source, escaping string literals appropriately.
     var index = 0;
     var source = "__p+='";
     text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
      source += text.slice(index, offset)
        .replace(escaper, function(match) { return '\\' + escapes[match]; });

      if (escape) {
       source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
      }
      if (interpolate) {
       source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
      }
      if (evaluate) {
       source += "';\n" + evaluate + "\n__p+='";
      }
      index = offset + match.length;
      return match;
     });
     source += "';\n";

     // If a variable is not specified, place data values in local scope.
     if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

     source = "var __t,__p='',__j=Array.prototype.join," +
       "print=function(){__p+=__j.call(arguments,'');};\n" +
       source + "return __p;\n";

     try {
      render = new Function(settings.variable || 'obj', '_', source);
     } catch (e) {
      e.source = source;
      throw e;
     }

     if (data) return render(data, _);
     var template = function(data) {
      return render.call(this, data);
     };

     // Provide the compiled function source as a convenience for precompilation.
     template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

     return template;
    };
   })();

模板的使用的DEMO如下, 也可以参考官方的文档:http://underscorejs.org/#template:

<html>
 <head>
  <body>
   <script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
   <script>
   //模板引擎的代码
   (function () {
    //underscore抄的模板引擎;
    var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

    var escapes = {
     "'":  "'",
     '\\':  '\\',
     '\r':  'r',
     '\n':  'n',
     '\t':  't',
     '\u2028': 'u2028',
     '\u2029': 'u2029'
    };

    $.templateSettings = {
     evaluate : /<%([\s\S]+?)%>/g,
     interpolate : /<%=([\s\S]+?)%>/g,
     escape  : /<%-([\s\S]+?)%>/g
    }
    $.template = function(text, data, settings) {
     var render;
     settings = $.extend({}, settings, $.templateSettings);

     // Combine delimiters into one regular expression via alternation.
     var matcher = new RegExp([
      (settings.escape || noMatch).source,
      (settings.interpolate || noMatch).source,
      (settings.evaluate || noMatch).source
     ].join('|') + '|$', 'g');

     // Compile the template source, escaping string literals appropriately.
     var index = 0;
     var source = "__p+='";
     text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
      source += text.slice(index, offset)
        .replace(escaper, function(match) { return '\\' + escapes[match]; });

      if (escape) {
       source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
      }
      if (interpolate) {
       source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
      }
      if (evaluate) {
       source += "';\n" + evaluate + "\n__p+='";
      }
      index = offset + match.length;
      return match;
     });
     source += "';\n";

     // If a variable is not specified, place data values in local scope.
     if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

     source = "var __t,__p='',__j=Array.prototype.join," +
       "print=function(){__p+=__j.call(arguments,'');};\n" +
       source + "return __p;\n";

     try {
      render = new Function(settings.variable || 'obj', '_', source);
     } catch (e) {
      e.source = source;
      throw e;
     }

     if (data) return render(data, _);
     var template = function(data) {
      return render.call(this, data);
     };

     // Provide the compiled function source as a convenience for precompilation.
     template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

     return template;
    };
   })();
   </script>
   <script>
   //会输出 <div>haahah</div>;
   console.log( $.template('<div><%=data%></div>')( {data:"haahah"} ) );
   </script>
  </body>
 </head>
</html>

修改了时间轴的样式, 又为这个插件添加了拖拽的方法,代码一下变得好乱, 顺便普及一下拖拽的事件, ondrop, ondragover,ondrag, 如果要让元素可以拖拽, 就要为要拖拽的元素添加draggable="true", 元素可以拖拽以后 , 要为可以拖放到的的DIV或者其他块元素,绑定一个dragover方法, 这个方法就做一件事, ev.preventDefault(), 看代码撒:

运行下面代码

<!DOCTYPE HTML>
<html>
<head>
 <meta charset="utf-8"/>
 <style type="text/css">
  #div1 {width:488px;height:70px;padding:10px;border:1px solid #aaaaaa;}
 </style>
 <script type="text/javascript">
  //当元素dragover时候一定要阻止默认事件, 否则把当前拖拽的元素就无法drop;
  function dragover(ev)
  {
   console.log(ev);
   ev.preventDefault();
  }

  //对于拖拽事件最重要的一个事件属性就是dataTransfer;
  function drag(ev)
  {
   console.log(ev);
   ev.dataTransfer.setData("Text",ev.target.id);
  }

  function drop(ev)
  {
   console.log(ev);
   var data=ev.dataTransfer.getData("Text");
   ev.target.appendChild(document.getElementById(data));
  }
 </script>
</head>
<body>

<p>请把图片拖放到矩形中:</p>

<div id="div1" ondrop="drop(event)" ondragover="dragover(event)"></div>
<br />
<img id="drag1" src="http://images0.cnblogs.com/news/24442/201507/081152502219706.gif" draggable="true" ondragstart="drag(event)" />

</body>
</html>

另外一个DEMO:

运行下面代码

<!DOCTYPE HTML>
<html>
<head>
 <meta charset="utf-8"/>
 <style type="text/css">
 </style>
</head>
<body>
 <p>What fruits do you like?</p>
 <ol ondragstart="dragStartHandler(event)">
  <li draggable="true" data-value="fruit-apple">Apples</li>
  <li draggable="true" data-value="fruit-orange">Oranges</li>
  <li draggable="true" data-value="fruit-pear">Pears</li>
 </ol>
 <script>
  var internalDNDType = 'text/x-example'; // set this to something specific to your site
  function dragStartHandler(event) {
   if (event.target instanceof HTMLLIElement) {
    // use the element's data-value="" attribute as the value to be moving:
    event.dataTransfer.setData(internalDNDType, event.target.dataset.value);
    event.dataTransfer.effectAllowed = 'move'; // only allow moves
   } else {
    event.preventDefault(); // don't allow selection to be dragged
   }
  }
 </script>

 <p>Drop your favorite fruits below:</p>
 <ol ondrop="dropHandler(event)" ondragover="dragover(event)">
  <!-- don't forget to change the "text/x-example" type to something
  specific to your site -->
  <li>drop</li>
 </ol>
 <script>
  var internalDNDType = 'text/x-example'; // set this to something specific to your site
  function dropHandler(event) {
   var li = document.createElement('li');
   var data = event.dataTransfer.getData(internalDNDType);
   if (data == 'fruit-apple') {
    li.textContent = 'Apples';
   } else if (data == 'fruit-orange') {
    li.textContent = 'Oranges';
   } else if (data == 'fruit-pear') {
    li.textContent = 'Pears';
   } else {
    li.textContent = 'Unknown Fruit';
   }
   event.target.appendChild(li);
  };
  function dragover(ev) {
   ev.preventDefault();
  };
 </script>
</body>
</html>

HTML5的拖拽提供了 setDragImage , effectAllowed , setData.... 等很多便捷的方法给开发者, 通过FileReader读取File, 然后就可以用ajax与后台进行交互, 和前端DOM操作:

<!DOCTYPE HTML>
<html>
<head>
 <meta charset="utf-8"/>
 <style type="text/css">
 </style>
</head>
<body>
 <div id="div0" ondragover="dragover(event)" ondrop="drop(event)">
  drop拖放文件进来
 </div>
 <script>
  function dragover(ev) {
   ev.preventDefault();
  };
  function drop(ev) {
   var reader = new FileReader();
   reader.onload = function ( ev ) {
    var oDiv = document.createElement("div");
    oDiv.innerHTML = ev.target.result;
    document.body.appendChild( oDiv );
   };
   reader.readAsText( ev.dataTransfer.files[0] );
   ev.preventDefault();
  }
 </script>
</body>
</html>

插件效果图:

jQuery时间轴插件的使用方法

最后完成的插件代码:

<!--
//设置内容;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1111,"type":"doc"},{"name":2222,"type":"doc"}]}}' ) ;

window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":"文档类型","type":"doc"},{"name":"音频类型","type":"audio","active":true},{"name":"视频类型","type":"video"},{"name":"单元测试","type":"test"},{"name":"图片类型","type":"pic"}]}}' ) ;

//设置内容, 对应的item对象如果active为true为激活态;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1111,"type":"doc"},{"name":2222,"type":"doc","active":true}]}}' ) ;

//设置某个第n个位置的item;
window.onWebMessage('{"type":"setItem","data":[2,{ "name" : "add-item", "type":"doc"}]}');

//激活第三个锚链接为选中态;
window.onWebMessage( '{"type":"active","data":2}' )

//获取目前的数据:
window.onWebMessage( '{"type":"getItem"}' )
-->

<html>
 <head>
  <meta charset="utf-8" />
  <script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
 </head>
 <style>
  /*初始的reset样式*/
  *{
   margin:0;
   padding:0;
  }
  .time-line-wrap{
   position: relative;
   width: 400px;
   margin:0 auto;
  }
  ul{
   list-style: none;
  }
  body,html{
   height: 100%;
  }
  body{
   background:#303030;
   -webkit-user-select: none;
   -moz-user-select: none;
   -ms-user-select: none;
   user-select: none;
  }


  /*样式开始*/
  .scroll-time-line{
   height:100%;
   overflow: hidden;
  }
  .time-line-wrap{
   position: relative;
  }
  .time-line-wrap::before{
   display: block;
   content: "";
   position: absolute;
   border: 2px solid #616161;
   width: 7px;
   background: #303030;
   height: 7px;
   z-index: 2;
   border-radius: 100%;
   left: 12px;
   top: 0;
  }
  .time-line-wrap::after{
   display: block;
   content: "";
   position: absolute;
   border: 2px solid #616161;
   width: 7px;
   background: #303030;
   height: 7px;
   z-index: 2;
   border-radius: 100%;
   left: 12px;
   bottom:0;
  }
  .time-line-ul{
   position: relative;
  }
  /**
  时间轴的轴用伪类实现;
  */
  .time-line-ul::before{
   display: block;
   position:absolute;
   content:"";
   height:100%;
   width:1px;
   left:17px;
   top:0;
   background: #616161;
  }

  .time-line-ul li{
   padding: 14px;
   position: relative;
   color: #FFF;
   height: 26px;
  }
  .time-line-ul li>* {
   vertical-align: middle;
   display: inline-block;
  }

  /**
  为了更好的维护hover的样式, 背景图片通过js进行管理
  hover start;
  */
  .time-line-ul li b{
   width: 32px;
   height: 32px;
  }
  .time-line-ul li b.active{
   display: none;
  }
  .time-line-ul li:hover b{
   display: none;
  }
  .time-line-ul li:hover .active{
   display: inline-block;
  }
  /**
   当li被点击的时候添加的类,优先级
  */
  .time-line-ul li b.show{
   display: none;
  }
  .time-line-ul li b.active.show{
   display: inline-block;
  }
  /**
  hover end
  */

  .time-line-ul li span{
   display: inline-block;
   white-space: nowrap;
   word-wrap: normal;
   width: 100px;
   text-overflow: ellipsis;
   overflow: hidden;
  }
  /**
  当拖拽LI到某个LI上面,这个LI变透明
  */
  .over{
   opacity: 0.4;
  }
  /**
  占位DIV;
  */
  .blank{
   display: block;
   height:50px;
   line-height: 50px;
  }

  /**
  默认时间轴锚链接的样式
  */
  .time-line-icon{
   width: 7px;
   height: 7px;
   display: inline-block;
   background: #616161;
   border-radius: 100%;
  }
  /**
  鼠标移动上来,或者锚链接有active时候的背景图样式
  */
  .time-line-icon.active,.time-line-icon:hover{
   background: #fff;
  }
 </style>

 <!--模板,勿删!-->
 <script type="text/tempate" id="li-tpl">
  <% for(var i=0; i<items.length; i++ ) {%>
   <li class="li-<%=i%>" draggable="true">
    <a href="###" class="time-line-icon <% if(items[i].active){ %> <%="active"%> <%}%> "></a>
    <b class="">
     <img src="imgs/<%=items[i].type%>.png" />
    </b>
    <b class="active">
     <img src="imgs/<%=items[i].type%>1.png" />
    </b>
    <span>
     <%=items[i].name%>
    </span>
   </li>
  <% } %>
 </script>

 <body>
  <!--
  滚动出现在这个div里面
  -->
  <div class="scroll-time-line">

   <!---
   时间轴相关的html结构
   -->
   <div class="time-line-wrap">
    <ul class="time-line-ul">

     <!----假数据--->
     <li class="li-0" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/doc.png">
      </b>
      <b class="active">
       <img src="imgs/doc1.png">
      </b>
      <span>
       文档类型
      </span>
     </li>

     <li class="li-2" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/video.png">
      </b>
      <b class="active">
       <img src="imgs/video1.png">
      </b>
      <span>
       视频类型
      </span>
     </li>


     <li class="li-3" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/test.png">
      </b>
      <b class="active">
       <img src="imgs/test1.png">
      </b>
      <span>
       单元测试
      </span>
     </li><li class="li-1" draggable="true">
     <a href="###" class="time-line-icon active "></a>
     <b class="">
      <img src="imgs/audio.png">
     </b>
     <b class="active">
      <img src="imgs/audio1.png">
     </b>
     <span>
      音频类型
     </span>
    </li>

     <li class="li-4" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/pic.png">
      </b>
      <b class="active">
       <img src="imgs/pic1.png">
      </b>
     <span>
      图片类型
     </span>
     </li>

     <li class="li-0" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/doc.png">
      </b>
      <b class="active">
       <img src="imgs/doc1.png">
      </b>
      <span>
       文档类型
      </span>
     </li>

     <li class="li-2" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/video.png">
      </b>
      <b class="active">
       <img src="imgs/video1.png">
      </b>
      <span>
       视频类型
      </span>
     </li>


     <li class="li-3" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/test.png">
      </b>
      <b class="active">
       <img src="imgs/test1.png">
      </b>
      <span>
       单元测试
      </span>
     </li><li class="li-1" draggable="true">
     <a href="###" class="time-line-icon active "></a>
     <b class="">
      <img src="imgs/audio.png">
     </b>
     <b class="active">
      <img src="imgs/audio1.png">
     </b>
     <span>
      音频类型
     </span>
    </li>

     <li class="li-4" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/pic.png">
      </b>
      <b class="active">
       <img src="imgs/pic1.png">
      </b>
      <span>
       图片类型
      </span>
     </li>

     <li class="li-0" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/doc.png">
      </b>
      <b class="active">
       <img src="imgs/doc1.png">
      </b>
      <span>
       文档类型
      </span>
     </li>

     <li class="li-2" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/video.png">
      </b>
      <b class="active">
       <img src="imgs/video1.png">
      </b>
      <span>
       视频类型
      </span>
     </li>


     <li class="li-3" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/test.png">
      </b>
      <b class="active">
       <img src="imgs/test1.png">
      </b>
      <span>
       单元测试
      </span>
     </li><li class="li-1" draggable="true">
     <a href="###" class="time-line-icon active "></a>
     <b class="">
      <img src="imgs/audio.png">
     </b>
     <b class="active">
      <img src="imgs/audio1.png">
     </b>
     <span>
      音频类型
     </span>
    </li>

     <li class="li-4" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/pic.png">
      </b>
      <b class="active">
       <img src="imgs/pic1.png">
      </b>
      <span>
       图片类型
      </span>
     </li>

     <li class="li-0" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/doc.png">
      </b>
      <b class="active">
       <img src="imgs/doc1.png">
      </b>
      <span>
       文档类型
      </span>
     </li>

     <li class="li-2" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/video.png">
      </b>
      <b class="active">
       <img src="imgs/video1.png">
      </b>
      <span>
       视频类型
      </span>
     </li>


     <li class="li-3" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/test.png">
      </b>
      <b class="active">
       <img src="imgs/test1.png">
      </b>
      <span>
       单元测试
      </span>
     </li><li class="li-1" draggable="true">
      <a href="###" class="time-line-icon active "></a>
      <b class="">
       <img src="imgs/audio.png">
      </b>
      <b class="active">
       <img src="imgs/audio1.png">
      </b>
      <span>
       音频类型
      </span>
     </li>

     <li class="li-4" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/pic.png">
      </b>
      <b class="active">
       <img src="imgs/pic1.png">
      </b>
      <span>
       图片类型
      </span>
     </li>

     <li class="li-0" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/doc.png">
      </b>
      <b class="active">
       <img src="imgs/doc1.png">
      </b>
      <span>
       文档类型
      </span>
     </li>

     <li class="li-2" draggable="true">
      <a href="###" class="time-line-icon "></a>
      <b class="">
       <img src="imgs/video.png">
      </b>
      <b class="active">
       <img src="imgs/video1.png">
      </b>
      <span>
       视频类型
      </span>
     </li>


     <!---假数据end--->

    </ul>
   </div>
   <!---
   时间轴相关的html结构结束
   -->
  </div>
  <script>
   //模板引擎的代码
   (function () {
    //underscore抄的模板引擎;
    var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

    var escapes = {
     "'":  "'",
     '\\':  '\\',
     '\r':  'r',
     '\n':  'n',
     '\t':  't',
     '\u2028': 'u2028',
     '\u2029': 'u2029'
    };

    $.templateSettings = {
     evaluate : /<%([\s\S]+?)%>/g,
     interpolate : /<%=([\s\S]+?)%>/g,
     escape  : /<%-([\s\S]+?)%>/g
    }
    $.template = function(text, data, settings) {
     var render;
     settings = $.extend({}, settings, $.templateSettings);

     // Combine delimiters into one regular expression via alternation.
     var matcher = new RegExp([
      (settings.escape || noMatch).source,
      (settings.interpolate || noMatch).source,
      (settings.evaluate || noMatch).source
     ].join('|') + '|$', 'g');

     // Compile the template source, escaping string literals appropriately.
     var index = 0;
     var source = "__p+='";
     text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
      source += text.slice(index, offset)
        .replace(escaper, function(match) { return '\\' + escapes[match]; });

      if (escape) {
       source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
      }
      if (interpolate) {
       source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
      }
      if (evaluate) {
       source += "';\n" + evaluate + "\n__p+='";
      }
      index = offset + match.length;
      return match;
     });
     source += "';\n";

     // If a variable is not specified, place data values in local scope.
     if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

     source = "var __t,__p='',__j=Array.prototype.join," +
       "print=function(){__p+=__j.call(arguments,'');};\n" +
       source + "return __p;\n";

     try {
      render = new Function(settings.variable || 'obj', '_', source);
     } catch (e) {
      e.source = source;
      throw e;
     }

     if (data) return render(data, _);
     var template = function(data) {
      return render.call(this, data);
     };

     // Provide the compiled function source as a convenience for precompilation.
     template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

     return template;
    };
   })();

   (function( fn ) {

    $( fn.call( $ ,$) );

   })(function ($) {

    $.timeLineSetting = {
     offsetTop : 100
    };

    $.extend($.fn, {
     timeLine : function() {
      $.each(this, function() {

       var _this = this,
         eleDrag;
       $(this).delegate(".time-line-ul>li", "click", function( ev ) {
        $(".time-line-icon.active").removeClass("active");
        $(this).find(".time-line-icon").addClass("active");
        $("b").removeClass("show");
        $(this).find("b").addClass("show");
        $(_this).animate({scrollTop: this.offsetTop - $.timeLineSetting.offsetTop},300);
        ev.preventDefault();
       }).delegate(".time-line-ul>li","dragstart" , function(ev) {
        //不允许img和a的拖拽;
        if( ev.target&&ev.target.tagName.toLocaleLowerCase() === "img" || ev.target.tagName.toLocaleLowerCase() === "a") {
         return false;
        };
        /*拖拽开始*/
        //拖拽效果
        ev.originalEvent.dataTransfer.effectAllowed = "move";
        eleDrag = ev.originalEvent.target;
        return true;
       }).delegate(".time-line-ul>li","dragenter" , function(ev) {
        return true;
       }).delegate(".time-line-ul>li", "dragover" , function(ev) {
        $(".time-line-ul>li.over").removeClass("over");
        $(this).addClass("over");
        $(".blank").remove();
        var $blank = $("<li class='blank' draggable='true'></li>");
        $(this).after( $blank );
        /*拖拽元素在目标元素头上移动的时候*/
        ev.preventDefault();
        return true;
       });
       $(".time-line-ul").bind("drop" , function(ev) {
        if(ev.target.tagName.toLocaleLowerCase() === "li") {
         $(ev.target).after( eleDrag );
        };
        $(".blank").remove();
        $(".time-line-ul>li.over").removeClass("over");
        return false;
       });
      });
     }
    });
   });

   $(function() {
    var compile= $.template( $("#li-tpl").html() || "");

    //与客户端的交互事件;
    var orginalData = {};
    window.onWebMessage = function( msg ) {
     msg = JSON.parse(msg);
     switch( msg.type ) {
      case "setItems" :
       $(".time-line-ul").html( compile(msg.data) );
       //结构化复制;
       orginalData = JSON.parse(JSON.stringify(msg.data));
       break;

      case "setItem" :
       orginalData.items&&orginalData.items.splice(msg.data[0],0,msg.data[1]);
       $(".time-line-ul").html( compile(orginalData) );
       break;

      case "getItem" :
        var result = [];
        var lis = $(".time-line-ul li");
        for(var i=0; i<lis.length; i++) {
         result.push( {
          index : i,
          src : $(lis[i]).find("img").attr("src"),
          name : $(lis[i]).find("span").text()
         });
        };
        alert(JSON.stringify( result ));
       break;

      case "active" :
       $(".time-line-icon.active").removeClass("active");
       $(".time-line-ul>li").eq( msg.data).find(".time-line-icon").addClass("active")
       break;

     };

    };

    //启用插件;
    $(".scroll-time-line").timeLine();
   })
  </script>
 </body>
</html>

以上所述就是本文的全部内容了,希望大家能够喜欢。


本文地址:http://www.45fan.com/bcdm/16439.html
Tags: jquery 插件 时间
编辑:路饭网
推广内容
推荐阅读
热门推荐
推荐文章
关于我们 | 联系我们 | 友情链接 | 网站地图 | Sitemap | App | 返回顶部
