创建自己的jquery表格插件教程

2016-02-15 21:49:06 来源:www.45fan.com 【

创建自己的jquery表格插件教程

在模仿easyui的dataGrid表格插件的同时,自己去封装了一个。实现了基本的json数据的动态加载,自动分页,全选全不选,鼠标悬浮变色,隔行变色等

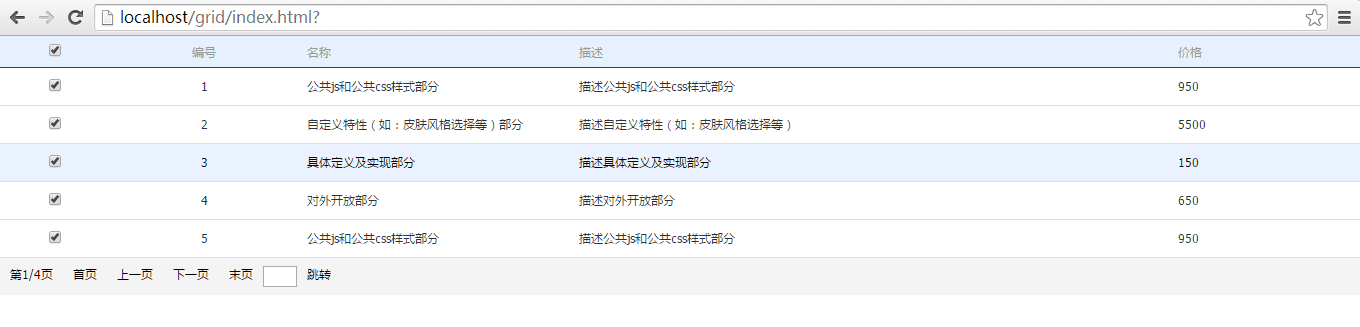

由于涉及到ajax访问,所以必须部署到iis上才能看出效果,先给大家看一下效果图:

创建自己的jquery表格插件教程

css样式

/* CSS Document */
body {
 font: 14px/1.43 "Helvetica Neue", Tahoma, "Microsoft YaHei", Arial;
 color: #253443;
 margin: 0 auto;
 padding: 0 auto;
}
table {
 border-collapse: collapse;
 border-spacing: 0;
 background: #FFF;
 font-size: 12px;
 width: 100%;
 border: 1;
 width: 100%;
}
thead {
 display: table-header-group;
 vertical-align: middle;
 border-color: inherit;
}
tr {
 display: table-row;
 vertical-align: inherit;
 border-color: inherit;
}
table thead tr {
 background-color: #E6F0FF;
}
table thead tr th {
 padding: 5px 8px;
 font-weight: normal;
 color: #999;
 border-bottom: 1px solid #B50802;
 vertical-align: bottom;
 line-height: 20px;
}
tbody {
 display: table-row-group;
 vertical-align: middle;
 border-color: inherit;
}
table tbody tr td {
 padding: 8px;
 border-top: 0px;
 border-bottom: 1px solid #DDD;
 vertical-align: middle;
 line-height: 20px;
}
table tfoot tr td {
 width: 100%;
 background-color: #F4F4F4;
 height: 20px;
 padding: 8px 0px;
 color: #000;
}
table tfoot tr td input {
 width: 30px;
 float: left;
}
table tfoot tr td span {
 display: inline-block;
 cursor: pointer;
 height:20px;
 padding:0 10px;
 float: left;
}
.mouseover {
 background-color: #EAF2FF;
 color: #000;
}

JSON文件

{
  "total":16,
 "rows": [
  {
  "ID": 1,
  "name": "公共js和公共css样式部分",
  "descrtion":"描述公共js和公共css样式部分",
  "Price": 950
  },
  {
  "ID": 2,
  "name": "自定义特性(如:皮肤风格选择等)部分",
  "descrtion":"描述自定义特性(如:皮肤风格选择等)",
  "Price": 5500
  },
  {
   "ID": 3,
  "name": "具体定义及实现部分",
  "descrtion":"描述具体定义及实现部分",
  "Price": 150
  },
  {
  "ID": 4,
  "name": "对外开放部分",
  "descrtion":"描述对外开放部分",
  "Price": 650
  },
  {
  "ID": 5,
  "name": "公共js和公共css样式部分",
  "descrtion":"描述公共js和公共css样式部分",
  "Price": 950
  },
  {
  "ID": 6,
  "name": "匹配所有大于给定索引值的元素",
  "descrtion":"描述匹配所有大于给定索引值的元素",
  "Price": 5500
  },
  {
   "ID": 7,
  "name": "查找第二第三行,即索引值是1和2,也就是比0大",
  "descrtion":"描述查找第二第三行,即索引值是1和2,也就是比0大",
  "Price": 150
  },
  {
  "ID": 8,
  "name": "从 0 开始计数",
  "descrtion":"从 0 开始计数",
  "Price": 650
  },
  {
  "ID": 9,
  "name": "公共js和公共css样式部分",
  "descrtion":"描述公共js和公共css样式部分",
  "Price": 950
  },
  {
  "ID": 10,
  "name": "自定义特性(如:皮肤风格选择等)部分",
  "descrtion":"描述自定义特性(如:皮肤风格选择等)",
  "Price": 5500
  },
  {
   "ID": 11,
  "name": "具体定义及实现部分",
  "descrtion":"描述具体定义及实现部分",
  "Price": 150
  },
  {
  "ID": 12,
  "name": "对外开放部分",
  "descrtion":"描述对外开放部分",
  "Price": 650
  },
  {
  "ID": 13,
  "name": "公共js和公共css样式部分",
  "descrtion":"描述公共js和公共css样式部分",
  "Price": 950
  },
  {
  "ID": 14,
  "name": "匹配所有大于给定索引值的元素",
  "descrtion":"描述匹配所有大于给定索引值的元素",
  "Price": 5500
  },
  {
   "ID": 15,
  "name": "查找第二第三行,即索引值是1和2,也就是比0大",
  "descrtion":"描述查找第二第三行,即索引值是1和2,也就是比0大",
  "Price": 150
  },
  {
  "ID": 16,
  "name": "从 0 开始计数",
  "descrtion":"从 0 开始计数",
  "Price": 650
  }
 ]
 }

jquery代码

// JavaScript Document
$(function () {
 var dataGrid = function (ele, opt) {
 this.defaults = {
  //id
  id: "",
  //请求url
  url: null,
  //表头格式
  columns: null,
  //是否分页
  pagination: false,
  //是否隔行变色
  isoddcolor: false,
  //是否搜索栏
  searchnation:false,
  //页显示
  pagesize: 5,
  //页索引
  pageindex: 1,
  //总页数
  totalpage: null
 }
 this.settings = $.extend({}, this.defaults, opt);
 }

 dataGrid.prototype = {
 _id:null,
 _op:null,
 init: function () {
  this._id=this.settings.id;
  _op=this;
  this.create();
  this.bindEvent();
 },
 create: function () {
  //初始化元素
  this.InitializeElement();
  //初始化表头
  this.createTableHead();
  //初始化动态行
  this.createTableBody(1);
  //初始化搜索框
  //if(this.settings.searchnation) this.createsearchbox();
  //选择是否分页
  if (this.settings.pagination) this.createTableFoot();
 },
 bindEvent: function () {
  //添加上一页事件
  this.registerUpPage();
  //添加下一页事件
  this.registerNextPage();
  //添加首页事件
  this.registerFirstPage();
  //添加最后一页事件
  this.registerlastPage();
  //添加跳转事件
  this.registerSkipPage();
  //添加鼠标悬浮事件
  this.registermousehover();
  //添加隔行变色
  this.registerchangebgcolor();
  //添加全选全不选事件
  this.registercheckall();
 },
 //初始化元素
 InitializeElement: function () {
  //var id = this.settings.id;
  $("#"+this._id).empty().append("<thead><tr></tr></thead><tbody></tbody><TFOOT></TFOOT>");
 },
 //循环添加表头
 createTableHead: function () {
  var headcols = this.settings.columns;
  for (var i = 0; i < headcols.length; i++) {
  if (headcols[i].field == 'ck') $("table[id='" + this._id + "'] thead tr").append("<th width='50px'><input name='chkall' type='checkbox'></th>");
  else $("table[id='" + this._id + "'] thead tr").append("<th width=" + headcols[i].width + " align=" + headcols[i].align + ">" + headcols[i].title + "</th>");
  }
 },
 //循环添加行
 createTableBody: function (pn) {
  var columns = _op.settings.columns;
  var json = this.getAjaxDate( _op.settings.url, null);
  //总页数=向上取整(总数/每页数)
  _op.settings.totalpage = Math.ceil((json.total) / _op.settings.pagesize);
  //开始页数
  var startPage = _op.settings.pagesize * (pn - 1);
  //结束页数
  var endPage = startPage + _op.settings.pagesize;
  var rowsdata = "";
  for (var row = startPage; row < endPage; row++) {
  if (row == json.rows.length) break;
  rowsdata += "<tr>";
  for (var colindex = 0; colindex < columns.length; colindex++) {
   if (columns[colindex].field == 'ck') rowsdata += '<td width="50px" align="center"><input name="chk" type="checkbox"></td>'
   else rowsdata += '<td width=' + columns[colindex].width + ' align=' + columns[colindex].align + '>' + json.rows[row][columns[colindex].field] + '</td>';
  }
  rowsdata += "</tr>";
  }
  $("table[id='" + this._id + "'] tbody").empty().append(rowsdata);
  $("#currentpageIndex").html(pn);
  this.registermousehover();
 },
 //初始化分页
 createTableFoot: function () {
  var footHtml = "<tr><td>";
  footHtml += "<span id='countPage'>第<font id='currentpageIndex'>1</font>/" + _op.settings.totalpage + "页</span>";
  footHtml += "<span id='firstPage'>首页</span>";
  footHtml += "<span id='UpPage'>上一页</span>";
  footHtml += "<span id='nextPage'>下一页</span>";
  footHtml += "<span id='lastPage'>末页</span>";
  footHtml += "<input type='text'/><span id='skippage'>跳转</span>";
  footHtml += "</td></tr>";
  $("table[id='" + this._id + "'] tfoot").append(footHtml);
  $("table[id='" + this._id + "'] tfoot tr td").attr("colspan", "5");
 },
 //添加鼠标悬浮事件
 registermousehover: function () {
  //添加鼠标悬浮事件
  $("table[id='" + this._id + "'] tbody tr").mouseover(function () {
  $(this).addClass("mouseover");
  }).mouseleave(function () {
  $(this).removeClass("mouseover");
  });
 },
 //添加隔行变色事件
 registerchangebgcolor: function () {
  //添加隔行变色
  if (this.settings.isoddcolor) $("table[id='" + this._id + "'] tr:odd").css("background-color", "#A77C7B").css("color", "#fff");
 },
 //添加全选全不选事件
 registercheckall: function () {
  //添加全选全不选事件
  $("input[name='chkall']").click(function () {
  if (this.checked) {
   $("input[name='chk']").each(function () {
   $(this).attr("checked", true);
   });
  } else {
   $("input[name='chk']").each(function () {
   $(this).attr("checked", false);
   });
  }
  });
 },
 //添加首页事件
 registerFirstPage: function () {
  $("#firstPage").click(function(){
  _op.settings.pageindex = 1;
  _op.createTableBody( _op.settings.pageindex);
  });
 },
 //添加上一页事件
 registerUpPage: function () {
  $("table").delegate("#UpPage", "click",
  function () {
  if ( _op.settings.pageindex == 1) {
   alert("已经是第一页了");
   return;
  }
  _op.settings.pageindex = _op.settings.pageindex - 1;
  _op.createTableBody(_op.settings.pageindex);
  });
 },
 //添加下一页事件
 registerNextPage: function () {
  $("table").delegate("#nextPage", "click",
  function () {
  if (_op.settings.pageindex == _op.settings.totalpage) {
   alert("已经是最后一页了");
   return;
  }
  _op.settings.pageindex = _op.settings.pageindex + 1;
  _op.createTableBody(_op.settings.pageindex);
  });
 },
 //添加尾页事件
 registerlastPage: function () {
  $("table").delegate("#lastPage", "click",
  function () {
   _op.settings.pageindex = _op.settings.totalpage;
  _op.createTableBody( _op.settings.totalpage);
  });
 },
 //添加页数跳转事件
 registerSkipPage: function () {
  $("table").delegate("#skippage", "click",
  function () {
  var value = $("table[id='" + this._id + "'] tfoot tr td input").val();
  if (!isNaN(parseInt(value))) {
   if (parseInt(value) <= _op.settings.totalpage) _op.createTableBody(parseInt(value));
   else alert("超出页总数");
  } else alert("请输入数字");
  });
 },
 //添加异步ajax事件
 getAjaxDate: function (url, parms) {
  //定义一个全局变量来接受$post的返回值
  var result;
  //用ajax的同步方式
  $.ajax({
  url: url,
  async: false,
  //改为同步方式
  data: parms,
  success: function (data) {
   result = data;
  }
  });
  return result;
 }
 }

 $.fn.grid = function (options) {
 var grid = new dataGrid(this, options);
 return this.each(function () {
  grid.init();
 });
 }
})

html调用

<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>无标题文档</title>
<script src="jquery-1.8.0.min.js"></script>
<link rel="stylesheet" type="text/css" href="style.css">
<script src="pagetion.js"></script>
<script type="text/javascript">
$(function(){
 $("#dg").grid({
  id:"dg",
  url:"data.json",
  columns: [
    {field:'ck',checkbox:true},
    { field: 'ID', title: '编号', width:100, align: 'center'},
    { field: 'name', title: '名称', width: 150, align: 'left' },
    { field: 'descrtion', title: '描述', width: 350, align: 'left' },
    { field: 'Price', title: '价格', width: 100, align: 'left' }
   ],
  isoddcolor:false,
  pagination:true,
  searchnation:true,
  pagesize:5
 });
 });
</script>
</head>
<body>
<form id="form1">
 <table id="dg">
 </table>
</form>
</body>
</html>

本文只是为大家提供了一个框架、思路,如何将这些知识点串连在一起,还需要大家认真的学习研究,动手创建一个属于自己的jquery表格插件。
