嵌套ASP.NET MVC Layout的方法步骤
直接上代码：
模板页Layout.cshtml代码(路径"~/Views/Backstage/MachineMng/Layout.cshtml")：
@{
ViewBag.Title = "货机管理";
}
<!DOCTYPE html>
<html>
<head>
<title>@ViewBag.Title</title>
<style type="text/css">
body
{
font-size: 12px;
padding: 0;
margin: 0;
background-color: #666;
}
.ul-menu
{
float: left;
margin: 0;
padding: 0;
margin-left: 3px;
}
.ul-menu li
{
float: left;
list-style: none;
margin: 0;
padding: 0;
width: 45px;
height: 25px;
line-height: 25px;
text-align: center;
margin-right: 20px;
border: solid 1px #999;
cursor: pointer;
}
</style>
<script type="text/javascript" src="~/Scripts/jquery-1.8.2.js"></script>
<script type="text/javascript">
function gotourl(url) {
window.location = url;
}
</script>
</head>
<body>
<div style="width: 960px; margin: auto; background-color: #fff; padding: 7px;">
<div style="height: 110px; border: solid 1px #999;">
<div style="float: left; width: 105px; height: 65px; margin: 3px; text-align: center; border: solid 1px #999;">
<div style="font-size: 16px; margin-top: 12px;">
IMU
<br />
120×90
</div>
</div>
<div style="float: right; padding: 5px; margin-top: 5px;">
<div style="float: left;">
欢迎您，<span>XXX</span> 【退出】
</div>
<div style="float: left; margin-left: 50px;">
@{
string[] weekDays = { "星期天", "星期一", "星期二", "星期三", "星期四", "星期五", "星期六" };
}
当前时间 @DateTime.Now.ToString("yyyy-MM-dd（" + weekDays[(int)DateTime.Now.DayOfWeek] + "）HH:mm")
</div>
<div style="float: left; margin-left: 50px; margin-right: 5px;">
帮助中心
</div>
</div>
<div style="margin-top: 76px;">
<ul class="ul-menu">
<li onclick="gotourl('@Url.Content("~/Backstage/MachineMng/MachineInfo/Index")')">货机</li>
<li onclick="gotourl('@Url.Content("~/Backstage/MachineMng/StartCargo/Index")')">运营</li>
<li>交易</li>
<li>系统</li>
</ul>
</div>
</div>
@RenderBody()
</div>
</body>
</html>
模板页RoadSetLayout.cshtml代码：(路径"~/Views/Backstage/MachineMng/RoadSetLayout.cshtml")：
@{
ViewBag.Title = "货道设置";
Layout = Url.Content("~/Views/Backstage/MachineMng/Layout.cshtml");
}
<!DOCTYPE html>
<html>
<head>
<title>@ViewBag.Title</title>
<style type="text/css">
.div-button1
{
float: left;
width: 120px;
height: 35px;
border: solid 1px #999;
font-size: 18px;
line-height: 35px;
text-align: center;
cursor: pointer;
}
.div-button2
{
float: left;
width: 120px;
height: 30px;
border: solid 1px #999;
font-size: 14px;
line-height: 30px;
text-align: center;
cursor: pointer;
}
.div-arrow
{
float: left;
height: 55px;
padding-top: 5px;
}
.div-arrow2
{
float: left;
width: 35px;
height: 22px;
padding-top: 6px;
margin-left: 10px;
}
</style>
<script type="text/javascript" src="~/Scripts/jquery-1.8.2.js"></script>
<script type="text/javascript" src="~/Scripts/My97DatePicker/WdatePicker.js"></script>
<script type="text/javascript">
$(function () {
});
</script>
</head>
<body>
<div style="height: 200px; border: solid 1px #999; border-top: 0;">
<div style="float: left; width: 200px; height: 150px; border: solid 1px #999; margin: 20px; padding: 5px;">
<div style="text-align: center; font-size: 18px; line-height: 25px; padding-top: 10px;">
货机现在运行正常
<br />
连续运行3天 72小时
</div>
<div style="padding-top: 10px; line-height: 20px;">
货机数据已经与平台数据同步，无需插数据盘。
请插入数据盘完成数据同步更新/数据盘已插入，数据传输完成10%
</div>
</div>
<div style="float: right; width: 600px; height: 160px; margin: 20px; margin-right: 50px;">
<div class="div-button1" style="margin-left: 100px; cursor: default; background-color: #eee;">
暂停货机
</div>
<div onclick="gotourl('@Url.Content("~/Backstage/MachineMng/StartCargo/Index")')" class="div-button1" style="margin-left: 50px;">
启动货机
</div>
<div style="float: left; width: 100%; height: 33px; line-height: 33px; text-align: center;">
<div style="float: left; margin-left: 100px;">
货机暂停才可以进行以下操作：以下操作完成须启动货机
</div>
</div>
<div style="float: left; width: 100%; height: 60px; line-height: 60px; text-align: center;">
<div class="div-arrow" style="margin-left: 150px;">
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_down.png")" />
</div>
<div class="div-arrow" style="margin-left: 160px;">
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_up.png")" />
</div>
</div>
<div class="div-button2" onclick="gotourl('@Url.Content("~/Backstage/MachineMng/RoadSet/Index")')" style="margin-left: 50px;">
商品货道设置
</div>
<div class="div-arrow2" style="">
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_right.png")" />
</div>
<div class="div-button2" style="margin-left: 5px;">
现金管理理
</div>
<div class="div-arrow2" style="">
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_right.png")" />
</div>
<div class="div-button2" style="margin-left: 5px;">
货机运维
</div>
</div>
</div>
@RenderBody()
</body>
</html>
Index页面代码(路径"~/Views/Backstage/MachineMng/RoadSet/Index.cshtml")：
@{
ViewBag.Title = "货道设置";
Layout = Url.Content("~/Views/Backstage/MachineMng/RoadSetLayout.cshtml");
}
<!DOCTYPE html>
<html>
<head>
<title>@ViewBag.Title</title>
<link type="text/css" href="~/Scripts/jquery-easyui-1.4.1/themes/default/easyui.css" rel="stylesheet" />
<style type="text/css">
body
{
font-size: 12px;
}
.div-box
{
float: left;
border: solid 1px #f5f5f5;
height: 148px;
width: 97px;
background-color: #f5f5f5;
cursor: default;
}
.div-box div
{
float: left;
margin-top: 15px;
margin-left: 9px;
height: 120px;
width: 80px;
line-height: 120px;
font-size: 16px;
font-family: 黑体;
text-align: center;
}
.ul-instructions
{
float: left;
width: 200px;
padding: 0;
margin: 0;
margin-left: 10px;
margin-top: 10px;
margin-bottom: 10px;
}
.ul-instructions li
{
float: left;
list-style: none;
width: 200px;
line-height: 25px;
font-size: 12px;
margin: 0;
padding: 3px;
}
.ul-instructions li div
{
float: left;
}
.div-road
{
float: left;
height: 130px;
width: 100px;
margin-left: 20px;
margin-top: 20px;
}
.table-road
{
background-color: #ffff00;
border: solid 1px #999;
}
.div-highlight
{
border: solid 1px #6dbde4 !important;
background-color: #dceaf2 !important;
}
.img-btn
{
cursor: pointer;
margin: 3px;
}
.img-btn2
{
cursor: pointer;
margin-left: 10px;
}
.table-addroads
{
width: 100%;
}
.table-addroads tr td:first-child
{
text-align: right;
}
.table-addroads tr td
{
height: 30px;
padding: 3px;
}
.input-green
{
background-color: green;
}
</style>
<script type="text/javascript" src="~/Scripts/jquery-1.8.2.js"></script>
<script type="text/javascript" src="~/Scripts/My97DatePicker/WdatePicker.js"></script>
<script type="text/javascript" src="~/Scripts/jquery-easyui-1.4.1/jquery.easyui.min.js"></script>
<script type="text/javascript" src="~/Scripts/SimpoWindow.js"></script>
<script type="text/javascript">
$(function () {
$("#tdboxs").load("Boxs?cargoCode=" + '@ViewBag.cargoCode' + "&t=" + new Date().valueOf(), function (data) {
$(".div-box:first").click();
});
});
//显示货柜的货道
function showBox(obj, boxId) {
$(".div-box").removeClass("div-highlight");
$(obj).addClass("div-highlight");
$("#divfloors").load("Floors?boxId=" + boxId + "&t=" + new Date().valueOf());
}
//添加货柜
function addbox(addType) {
if (confirm("确定添加？")) {
var cargoCode = '@ViewBag.cargoCode';
var floorType = $("input[name='floorType']:checked").val();
$.ajax({
type: "POST",
url: "@Url.Content("~/Backstage/MachineMng/RoadSet/AddBox")",
data: { "addType": addType, "cargoCode": cargoCode, "floorType": floorType },
success: function (d) {
var data = eval("(" + d + ")");
if (data.ok) {
$("#tdboxs").load("Boxs?cargoCode=" + cargoCode + "&t=" + new Date().valueOf(), function (data) {
if (addType == 1) {
$(".div-box:first").click();
} else {
$(".div-box:last").click();
}
});
} else {
alert("添加失败：" + data.msg);
}
},
error: function () {
alert("添加失败");
}
});
}
}
//删除货柜
function delbox(addType) {
if (confirm("确定删除？")) {
var cargoCode = '@ViewBag.cargoCode';
$.ajax({
type: "POST",
url: "@Url.Content("~/Backstage/MachineMng/RoadSet/DelBox")",
data: { "addType": addType, "cargoCode": cargoCode },
success: function (data) {
if (data == "ok") {
if (addType == 1) {
$(".div-box:first").remove();
}
else {
$(".div-box:last").remove();
}
$(".div-box:first").click();
}
else {
alert("删除失败" + data);
}
},
error: function () {
alert("删除失败");
}
});
}
}
//添加货道
function addroad(obj, boxId, floor) {
$.ajax({
type: "POST",
url: "@Url.Content("~/Backstage/MachineMng/RoadSet/AddRoad")",
data: { "boxId": boxId, "floor": floor },
success: function (d) {
var data = eval("(" + d + ")");
if (data.ok) {
var td = $(obj).parent().parent().parent().parent().find("td:first");
td.find("#divroads_" + floor).load("Roads?boxId=" + boxId + "&floor=" + floor + "&t=" + new Date().valueOf());
var roadNum = parseInt(td.find(".span-roadNum").text(), 10);
td.find(".span-roadNum").html((roadNum + 1).toString());
} else {
alert("添加失败：" + data.msg);
}
},
error: function () {
alert("添加失败");
}
});
}
//删除货道
function delroad(obj, boxId, floor) {
if (confirm("确定删除？")) {
$.ajax({
type: "POST",
url: "@Url.Content("~/Backstage/MachineMng/RoadSet/DelRoad")",
data: { "boxId": boxId, "floor": floor },
success: function (data) {
if (data == "ok") {
var td = $(obj).parent().parent().parent().parent().find("td:first");
td.find(".div-road:last").remove();
var roadNum = parseInt(td.find(".span-roadNum").text(), 10);
if (roadNum > 0) {
td.find(".span-roadNum").html((roadNum - 1).toString());
}
}
else {
alert("删除失败" + data);
}
},
error: function () {
alert("删除失败");
}
});
}
}
//添加货道层
function addfloor(obj, boxId) {
$.ajax({
type: "POST",
url: "@Url.Content("~/Backstage/MachineMng/RoadSet/AddFloor")",
data: { "boxId": boxId },
success: function (d) {
var data = eval("(" + d + ")");
if (data.ok) {
$("#divfloors").load("Floors?boxId=" + boxId + "&t=" + new Date().valueOf());
var div = $(obj).parent().parent();
var floorNum = parseInt(div.find(".span-floorNum").text(), 10);
div.find(".span-floorNum").html((floorNum + 1).toString());
} else {
alert("添加失败：" + data.msg);
}
},
error: function () {
alert("添加失败");
}
});
}
//删除货道层
function delfloor(obj, boxId) {
var div = $(obj).parent().parent().parent();
if (div.find(".table-floor").length < 2) return;
if (confirm("确定删除？")) {
$.ajax({
type: "POST",
url: "@Url.Content("~/Backstage/MachineMng/RoadSet/DelFloor")",
data: { "boxId": boxId },
success: function (d) {
var data = eval("(" + d + ")");
if (data.ok) {
div.find(".table-floor:last").remove();
var floorNum = parseInt(div.find(".span-floorNum").text(), 10);
div.find(".span-floorNum").html((floorNum - 1).toString());
} else {
alert("删除失败：" + data.msg);
}
},
error: function () {
alert("删除失败");
}
});
}
}
//批量添加货道
function addroads(obj, boxId, floor) {
SimpoWin.showWin2("更换货箱", "addroads", 240, 170);
var windiv = $("#addroads");
var btnOK = windiv.find("input[type='button']");
btnOK.bind("click", function () {
var roadNum = windiv.find("select[name='roadNum']").find("option:selected").val();
var roadSpec = windiv.find("select[name='roadSpec']").find("option:selected").val();
$.ajax({
type: "POST",
url: "@Url.Content("~/Backstage/MachineMng/RoadSet/AddRoads")",
data: { "boxId": boxId, "floor": floor, "roadNum": roadNum, "roadSpec": roadSpec },
success: function (d) {
var data = eval("(" + d + ")");
if (data.ok) {
var td = $(obj).parent().parent();
td.find("#divroads_" + floor).load("Roads?boxId=" + boxId + "&floor=" + floor + "&t=" + new Date().valueOf());
td.find(".span-roadNum").html(data.roadNum.toString());
} else {
alert("添加失败：" + data.msg);
}
},
error: function () {
alert("添加失败");
}
});
btnOK.unbind("click");
SimpoWin.closeWin2("addroads");
});
}
</script>
</head>
<body>
<div style="height: 30px; line-height: 30px; padding-top: 5px; border-left: solid 1px #999; border-right: solid 1px #999; text-align: center;">
客户喜好
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_longright.png")" />
商品
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_longright.png")" />
选择货道
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_longright.png")" />
摆放商品
<img alt="" src="@Url.Content("~/Images/Cargo/roadset_arrow_longright.png")" />
完成货道商品绑定
</div>
<div id="divbox" style="border: solid 1px #999; border-top: 0; border-bottom: none;">
<table cellpadding="0" cellspacing="0" style="border-collapse: collapse; width: 100%;">
<tr>
<td style="width: 260px;">
<ul class="ul-instructions">
<li>
<div style="height: 25px; width: 25px; background-color: yellow;"></div>
<div style="height: 25px; margin-left: 10px;">黄色：表示更换货道</div>
</li>
<li>
<div style="height: 25px; width: 25px; background-color: green;"></div>
<div style="height: 25px; margin-left: 10px;">绿色：表示上货数量</div>
</li>
<li>
<div style="height: 25px; width: 25px; background-color: red;"></div>
<div style="height: 25px; margin-left: 10px;">红色：表示现有商品数</div>
</li>
<li>
<div style="height: 25px; width: 25px; background-color: gray;"></div>
<div style="height: 25px; margin-left: 10px;">灰色：表示最大商品数</div>
</li>
<li>
<div style="height: 23px; width: 23px; border: solid 1px #000; text-align: center;">调</div>
<div style="height: 25px; margin-left: 10px;">调：表示调换本商品</div>
</li>
<li>
<div style="height: 23px; width: 23px; border: solid 1px #000; text-align: center;">换</div>
<div style="height: 25px; margin-left: 10px;">换：表示更换商品种类</div>
</li>
</ul>
</td>
<td>
<div style="float: left;">
<div style="text-align: center; margin-top: 25px;">
<img onclick="addbox(1)" alt="" class="img-btn" src="@Url.Content("~/Images/Cargo/roadset_add.png")" />
</div>
<div style="margin-top: 50px; text-align: center;">
<img onclick="delbox(1)" alt="" class="img-btn" src="@Url.Content("~/Images/Cargo/roadset_Del.png")" />
</div>
</div>
</td>
<!--货柜-->
<td id="tdboxs">
</td>
<td>
<div style="float: left;">
<div style="text-align: center; margin-top: 25px;">
<img onclick="addbox(2)" alt="" class="img-btn" src="@Url.Content("~/Images/Cargo/roadset_add.png")" />
</div>
<div style="margin-top: 50px; text-align: center;">
<img onclick="delbox(2)" alt="" class="img-btn" src="@Url.Content("~/Images/Cargo/roadset_Del.png")" />
</div>
</div>
</td>
</tr>
<tr>
<td></td>
<td></td>
<td style="text-align: right;">
<input name="floorType" value="1" type="radio" checked="checked" />横箱<input name="floorType" value="0" type="radio" />竖箱</td>
<td></td>
</tr>
</table>
</div>
<!--货道层-->
<div id="divfloors"></div>
<!-- 分隔线 -------------------------------------------------------------------------------------->
<!--更换货箱-->
<div id="addroads" style="display: none;">
<div style="padding: 10px;">
<table class="table-addroads" cellpadding="0" cellspacing="0" style="border-collapse: collapse;">
<tr>
<td style="width: 80px;">货道数：</td>
<td>
<select name="roadNum">
<option value="4">4货道</option>
<option value="6">6货道</option>
<option value="8">8货道</option>
<option value="10">10货道</option>
</select>
</td>
</tr>
<tr>
<td>货道型号：</td>
<td>
<select name="roadSpec">
<option value="C25/80">C25/80</option>
<option value="C10/50">C10/50</option>
<option value="C30/85">C30/85</option>
<option value="C15/75">C15/75</option>
</select>
</td>
</tr>
<tr>
<td colspan="2" style="text-align: center;">
<input type="button" value="确定" />
</td>
</tr>
</table>
</div>
</div>
<!--批量更换货道-->
<div id="replaceRoadSpec" style="display: none;">
<div style="padding: 10px;">
<table class="table-addroads" cellpadding="0" cellspacing="0" style="border-collapse: collapse;">
<tr>
<td>货道型号：</td>
<td>
<select name="roadSpec">
<option value="C25/80">C25/80</option>
<option value="C10/50">C10/50</option>
<option value="C30/85">C30/85</option>
<option value="C15/75">C15/75</option>
</select>
</td>
</tr>
<tr>
<td colspan="2" style="text-align: center;">
<input type="button" value="确定" />
</td>
</tr>
</table>
</div>
</div>
<!--更换单个货道-->
<div id="replaceRoadSpecSingle" style="display: none;">
<div style="padding: 10px;">
<table class="table-addroads" cellpadding="0" cellspacing="0" style="border-collapse: collapse;">
<tr>
<td>当前货道：</td>
<td id="currentRoadSpec"></td>
</tr>
<tr>
<td>货道型号：</td>
<td>
<select name="roadSpec">
<option value="C25/80">C25/80</option>
<option value="C10/50">C10/50</option>
<option value="C30/85">C30/85</option>
<option value="C15/75">C15/75</option>
</select>
</td>
</tr>
<tr>
<td colspan="2" style="text-align: center;">
<input type="button" value="确定" />
</td>
</tr>
</table>
</div>
</div>
</body>
</html>

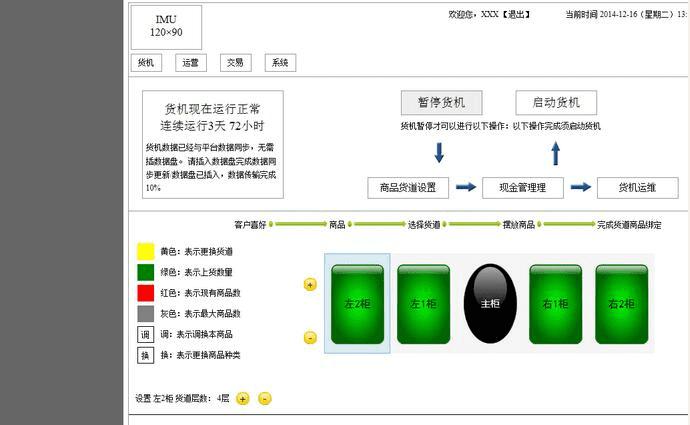

效果图：
以上就是本文的全部内容，希望对大家的学习有所帮助。
本文地址：http://www.45fan.com/bcdm/45873.html
