怎么样能够通过ASP.NETMVC实现分页和排序功能？
分页和排序，应该是软件开发中，需要必知必会的技能了，对于分页，网上很多教程，当然，别人终究是别人的，只有自己理解，会了，并且吸收之后，再用自己的语言，传授出来，这才是硬道理。好了，废话说多了。现在我们进入正题：
这里，我打算使用EF Code-First方式分页控件就是用PagedList.MVC,来做分页，对于排序，实现的思路是，加载数据出来之后，默认是升序排序，然后我们点击一下相应的列标题，就按照该字段降序排序，查数据。思路明确了，就开始干吧！

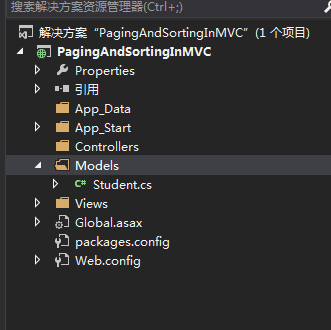

1.首先新建一个空白的MVC项目，在Model文件夹里，新建一个Student实体
Student实体中的代码：
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
namespace PagingAndSortingInMVC.Models
{
public class Student
{
public int ID { get; set; }
public string Name { get; set; }
public string Sex { get; set; }
public string Email { get; set; }
public int Age { get; set; }
}
}
2.添加EF引用之后，我们在根目录下，在创建一个文件夹Map，在里面创建一个类StudentMap
StudentMap类的代码：
using PagingAndSortingInMVC.Models;
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations.Schema;
using System.Data.Entity.ModelConfiguration;
using System.Linq;
using System.Web;
namespace PagingAndSortingInMVC.Map
{
public class StudentMap:EntityTypeConfiguration<Student>
{
public StudentMap()
{
//配置主键
this.HasKey(s => s.ID);
//把ID列设置为自增列
this.Property(s => s.ID).HasDatabaseGeneratedOption(DatabaseGeneratedOption.Identity);
//配置列
this.Property(s => s.Name).HasMaxLength(50).IsRequired();
this.Property(s => s.Sex).HasMaxLength(2).IsRequired();
this.Property(s => s.Age).IsRequired();
this.Property(s => s.Email).HasMaxLength(100).IsRequired();
}
}
}
3.在根目录下，再新建一个文件夹DBHelper，在里面新建一个类StudentDBContext
StudentDBContext类的代码：
using PagingAndSortingInMVC.Map;
using System;
using System.Collections.Generic;
using System.Data.Entity;
using System.Linq;
using System.Web;
namespace PagingAndSortingInMVC.DBHelper
{
public class StudentDBContext:DbContext
{
public StudentDBContext()
: base("name=DbConnectionString")
{
}
protected override void OnModelCreating(DbModelBuilder modelBuilder)
{
//因为这里只有一个实体，就不搞的那么复杂了，不用反射来做。直接添加单个实体的配置
modelBuilder.Configurations.Add(new StudentMap());
base.OnModelCreating(modelBuilder);
}
}
}

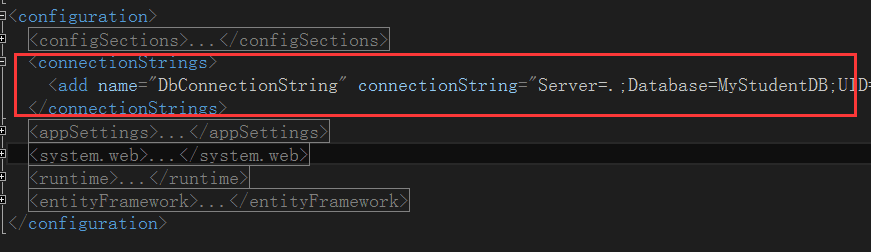

然后在配置文件中加上：
<connectionStrings> <add name="DbConnectionString" connectionString="Server=.;Database=MyStudentDB;UID=sa;PWD=Password_1" providerName="System.Data.SqlClient"/> </connectionStrings>
具体的位置在这：

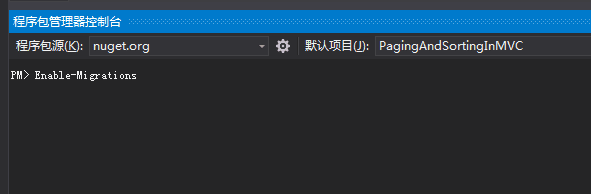

4.好了，现在实体和数据库的配置都写好了，现在我们使用数据库迁移技术【Migrations】来自动生成数据库，首先打开程序包管理控制台。
添加一行语句：Enable-Migrations，然后按回车键：
这个时候，就在我们程序中生成了一个文件夹Migrations，里面有一个类Configuration：
修改Configuration类中的代码：把 AutomaticMigrationsEnabled 设置为true;并添加一句代码，让迁移过程中，没有数据丢失：
AutomaticMigrationDataLossAllowed = false;
然后在程序包管理控制台中接着输入：
Update-Database -Verbose
注意： 【-Verbose和Database之间有空格】，之所以输入-Verbose就是可以在控制台看到生成的SQL语句：
PM> Update-Database -Verbose Using StartUp project 'PagingAndSortingInMVC'. Using NuGet project 'PagingAndSortingInMVC'. Specify the '-Verbose' flag to view the SQL statements being applied to the target database. Target database is: 'MyStudentDB' (DataSource: ., Provider: System.Data.SqlClient, Origin: Configuration). No pending explicit migrations. Applying automatic migration: 201607180249098_AutomaticMigration. CREATE TABLE [dbo].[Students] ( [ID] [int] NOT NULL IDENTITY, [Name] [nvarchar](50) NOT NULL, [Sex] [nvarchar](2) NOT NULL, [Email] [nvarchar](100) NOT NULL, [Age] [int] NOT NULL, CONSTRAINT [PK_dbo.Students] PRIMARY KEY ([ID]) ) CREATE TABLE [dbo].[__MigrationHistory] ( [MigrationId] [nvarchar](150) NOT NULL, [ContextKey] [nvarchar](300) NOT NULL, [Model] [varbinary](max) NOT NULL, [ProductVersion] [nvarchar](32) NOT NULL, CONSTRAINT [PK_dbo.__MigrationHistory] PRIMARY KEY ([MigrationId], [ContextKey]) ) INSERT [dbo].[__MigrationHistory]([MigrationId], [ContextKey], [Model], [ProductVersion]) VALUES (N'201607180249098_AutomaticMigration', N'PagingAndSortingInMVC.Migrations.Configuration', 0x1F8B0800000000000400CD57DB6EDB38107D5FA0FF20F03935ED040B7403B9856327BBC6D64950A579A7A5B1422C456A492AB0BFAD0FFB49FB0B3BD4DD926F31DA451120B0A8993333673817FDFBED1FFFD33A11DE2B68C3951C93D160483C90A18AB88CC724B3ABF71FC8A78FEF7EF16FA364ED3D5772574E0E35A51993176BD36B4A4DF80209338384875A19B5B283502594458A5E0E87BFD1D188024210C4F23CFF4B262D4F207FC0C7A99221A4366362A12210A63CC737418EEADDB3044CCA4218934716A36F1319054A5BFC35978BE7E96076F307881434F1268233F42A00B1221E93525966D1E7EBAF0602AB958C83140F9878DAA480722B260C94B15C37E2A78635BC7461D146B1820A336355F246C0D155C913EDAA9FC536A97944266F9171BB7151E76C2243368B405AE2756D5D4F857672FBB82E723428F52FBC9D5217F565C13BE5FE2EBC69266CA6612C21B39A0954CC9682877FC2E649FD05722C3321DA2EA3D3F86EEB008F1EB5C23CDBCD17589581CC67C4A3DB7AB4AB58ABB5748A18E7D25E5D12EF1E8DB3A580FA46B4F808ACD2F03B48D0CC42F4C8AC058D099DBBF091D39EF58E2DF7BFB28657101922DE82AD3F838CEDCB98FC8AA574C7D7105507A5035F25C73A441DAB33D8E1E061A301AC0FD8BCFC11266F13C6C501A3A3E10F897412C3B15CB6017CDA5442BF3EB01359C631D3DB4532BB712F60BDAB5AB0B1940563CA08B6DD2D8003B0DB9086788D2345BF1AD425B9CBE1DAB5A63BD2A23D566D94EEE9A3FE82A52966A3D557CB132F289AEAF47DF0F60E93141834343B1A4DED6D6D098B88C5D0798BA6D1D33BAE8D9D31CB96CCA56B1A253DB15E22F6905C99EB70DDED220DF59582FB5D281D9E3075923A900DA9771867821279C8507BD674DC9E663EE898607A47979A2A9125725FA73BA45DF49DB67E71723A42DE44DA00F9C1E9FA654768239447A763E4E5DD46C80FFAFA3EEDD0DF4D39EDE5BC3333BA77E8500D76456AEB752D766ACE2FEFFFF105A757108508F19098571EE5C5B0311692811318047F8BA9E079D7A804164CF215185B8C5582F5FAA1B317FD3C3B0A352612A72D2AFFFB6AC01DA94787FF1BC7557B1B90AF4C872F4CF7F681F387FD4EC86333F1C82CDF89994FF3F34775CEED771CD4FD3172D2143E34848BBA1B9368A9D0EBC2CF66789F39A2FB6DC0A7EDAF217F0686C70D84FB369210BAFA6A402B99B95CA98A620CADED5125D2C9C0022C8B90A1094EB6150B2DBE0EC1987C557B6622CB53BF84682E1F329B6676620C244BB1B5E3FAF4B0FD7C0FD9F6D97F48DD93F91E21A09B1C43800779937111D57EDFEDB8427B20DC65294B1ABDC25515E1E24D8D74AFE48940257D334841BA7BF104492A10CC3CC880BDC239BEE13AF91962166EAA6EBE1FE47822B669F7679CC59A25A6C468F4DD173E759FF81FFF0366E046F514100000 , N'6.1.3-40302') Running Seed method. PM>

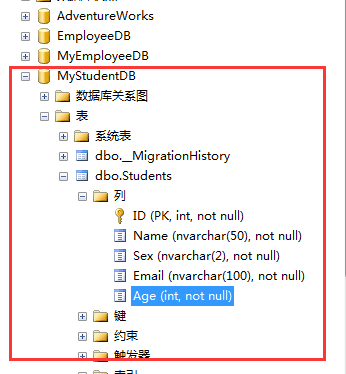

打开数据库，我们看到，就生成我们想要的数据库和表了：

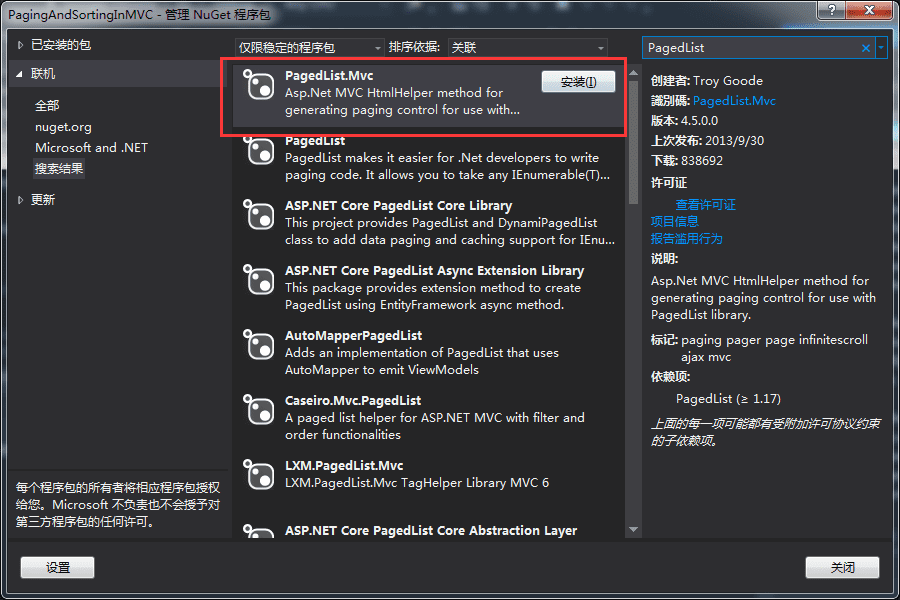

既然要分页，就开始引入分页控件吧，引入PagedList.MVC

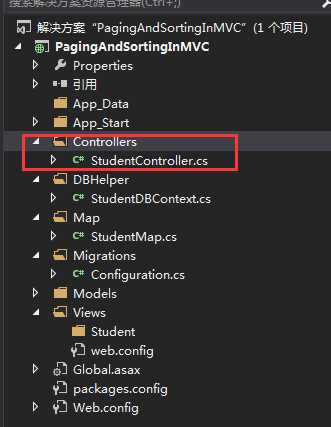

5.新建一个空白模板的Student控制器。
控制器里面就是我们主要的逻辑代码了：
using PagingAndSortingInMVC.DBHelper;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using PagedList;
using PagingAndSortingInMVC.Models;
namespace PagingAndSortingInMVC.Controllers
{
public class StudentController : Controller
{
private StudentDBContext db=null;
public StudentController()
{
db = new StudentDBContext();
}
/// <summary>
/// 首页【查询分页数据】
/// </summary>
/// <param name="sortBy">根据什么排序</param>
/// <param name="currentSort">当前排序字段</param>
/// <param name="page">当前页</param>
/// <returns></returns>
public ActionResult Index(string sortBy,string currentSort,int? page)
{
int pageIndex = 1;
int pageSize = 5;
//判断page是否有值，有的话就给值，没有就赋值1
pageIndex = page.HasValue ? Convert.ToInt32(page) : 1;
ViewBag.CurrentSort = sortBy;
//这句必须要，否则刚开始是空的，报错，就不能循环了。
sortBy = string.IsNullOrEmpty(sortBy) ? "Name" : sortBy; //如果sortBy为空，就设置为Name，下面设置的时候，默认按照名称排序
IPagedList<Student> lstStudent = null;
switch (sortBy)
{
case "Name":
//如果sortBy==currentSort，就按照对应字段降序排列，并分页。否则升序。
if (sortBy.Equals(currentSort))
{
lstStudent = db.Set<Student>().
OrderByDescending(s => s.Name).
ToPagedList(pageIndex, pageSize); //根据一热心博友的建议，加上了这句，点击相应的列，升序降序循环。 ViewBag.CurrentSort = null;
}
else
{
lstStudent = db.Set<Student>().
OrderBy(s => s.Name).
ToPagedList(pageIndex, pageSize);
}
break;
case "Sex":
//如果sortBy==currentSort，就按照对应字段降序排列，并分页。否则升序。
if (sortBy.Equals(currentSort))
{
lstStudent = db.Set<Student>().
OrderByDescending(s => s.Sex).
ToPagedList(pageIndex, pageSize); //根据一热心博友的建议，加上了这句，点击相应的列，升序降序循环。 ViewBag.CurrentSort = null;
}
else
{
lstStudent = db.Set<Student>().
OrderBy(s => s.Sex).
ToPagedList(pageIndex, pageSize);
}
break;
case "Email":
//如果sortBy==currentSort，就按照对应字段降序排列，并分页。否则升序。
if (sortBy.Equals(currentSort))
{
lstStudent = db.Set<Student>().
OrderByDescending(s => s.Email).
ToPagedList(pageIndex, pageSize); //根据一热心博友的建议，加上了这句，点击相应的列，升序降序循环。 ViewBag.CurrentSort = null;
}
else
{
lstStudent = db.Set<Student>().
OrderBy(s => s.Email).
ToPagedList(pageIndex, pageSize);
}
break;
case "Age":
//如果sortBy==currentSort，就按照对应字段降序排列，并分页。否则升序。
if (sortBy.Equals(currentSort))
{
lstStudent = db.Set<Student>().
OrderByDescending(s => s.Age).
ToPagedList(pageIndex, pageSize); //根据一热心博友的建议，加上了这句，点击相应的列，升序降序循环。 ViewBag.CurrentSort = null;
}
else
{
lstStudent = db.Set<Student>().
OrderBy(s => s.Age).
ToPagedList(pageIndex, pageSize);
}
break;
default:
//如果sortBy==currentSort，就按照对应字段降序排列，并分页。否则升序。
if (sortBy.Equals(currentSort))
{
lstStudent = db.Set<Student>().
OrderByDescending(s => s.Name).
ToPagedList(pageIndex, pageSize); //根据一热心博友的建议，加上了这句，点击相应的列，升序降序循环。 ViewBag.CurrentSort = null;
}
else
{
lstStudent = db.Set<Student>().
OrderBy(s => s.Name).
ToPagedList(pageIndex, pageSize);
}
break;
}
return View(lstStudent);
}
public ActionResult AddStudent()
{
return View();
}
[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult AddStudent(Student model)
{
db.Set<Student>().Add(model);
db.SaveChanges();
return RedirectToAction("Index");
}
}
}

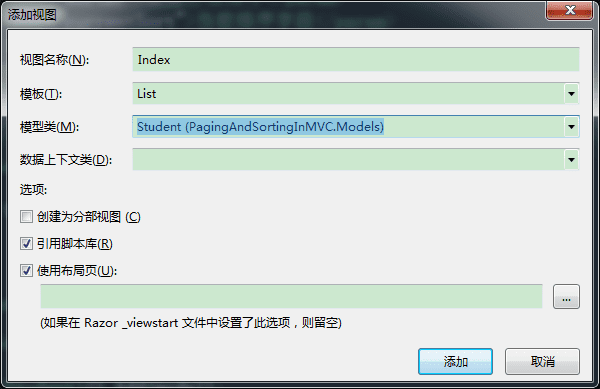

创建相对应的Index视图和AddStudent视图：
Index视图：
@using PagedList.Mvc;@*//引入分页的组件*@
@model PagedList.IPagedList<PagingAndSortingInMVC.Models.Student>
@{
ViewBag.Title = "Index";
}
<style>
table {
width: 100%;
}
table tr td {
border: 2px solid black;
text-align: center;
word-wrap: break-word;
}
table tr:hover {
background-color: #000;
color: #fff;
}
table tr th {
border: 2px solid black;
text-align: center;
background-color: #fff;
color: #000;
}
</style>
<h2>Index</h2>
<p>
@Html.ActionLink("Create New", "Create")
</p>
@using(Html.BeginForm("Index","Employee",FormMethod.Get))
{
<table class="table">
<tr>
<th>
@* 通过创建匿名对象，传递参数到控制器中，new { sortBy = "Name", currentSort = ViewBag.CurrentSort }*@
@*参数的大小写无所谓，只要和控制器名称一样就行，sortBy,currentSort*@
@Html.ActionLink("Name", "Index", new { sortBy = "Name", currentSort = ViewBag.CurrentSort })
</th>
<th>
@Html.ActionLink("Sex", "Index", new { sortBy = "Sex", currentSort = ViewBag.CurrentSort })
</th>
<th>
@Html.ActionLink("Email", "Index", new { sortBy = "Email", currentSort = ViewBag.CurrentSort })
</th>
<th>
@Html.ActionLink("Age", "Index", new {sortBy = "Age", currentSort = ViewBag.CurrentSort })
</th>
<th></th>
</tr>
@foreach (var item in Model) {
<tr>
<td>
@Html.DisplayFor(modelItem => item.Name)
</td>
<td>
@Html.DisplayFor(modelItem => item.Sex)
</td>
<td>
@Html.DisplayFor(modelItem => item.Email)
</td>
<td>
@Html.DisplayFor(modelItem => item.Age)
</td>
<td>
</td>
</tr>
}
</table>
}
<div id="Paging" style="text-align:center">
@*总页数是否小于当前页，小于就说明没数据，赋值0，否则赋值PageNumber*@
Page @(Model.PageCount< Model.PageNumber?0:Model.PageNumber) of @Model.PageCount
@Html.PagedListPager(Model, page => Url.Action("Index", new { page}),PagedListRenderOptions.Classic)
</div>
AddStudent视图：
@model PagingAndSortingInMVC.Models.Student
@{
ViewBag.Title = "AddStudent";
}
<h2>AddStudent</h2>
@using (Html.BeginForm())
{
@Html.AntiForgeryToken()
<div class="form-horizontal">
<h4>Student</h4>
<hr />
@Html.ValidationSummary(true, "", new { @class = "text-danger" })
<div class="form-group">
@Html.LabelFor(model => model.Name, htmlAttributes: new { @class = "control-label col-md-2" })
<div class="col-md-10">
@Html.EditorFor(model => model.Name, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Name, "", new { @class = "text-danger" })
</div>
</div>
<div class="form-group">
@Html.LabelFor(model => model.Sex, htmlAttributes: new { @class = "control-label col-md-2" })
<div class="col-md-10">
@Html.EditorFor(model => model.Sex, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Sex, "", new { @class = "text-danger" })
</div>
</div>
<div class="form-group">
@Html.LabelFor(model => model.Email, htmlAttributes: new { @class = "control-label col-md-2" })
<div class="col-md-10">
@Html.EditorFor(model => model.Email, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Email, "", new { @class = "text-danger" })
</div>
</div>
<div class="form-group">
@Html.LabelFor(model => model.Age, htmlAttributes: new { @class = "control-label col-md-2" })
<div class="col-md-10">
@Html.EditorFor(model => model.Age, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Age, "", new { @class = "text-danger" })
</div>
</div>
<div class="form-group">
<div class="col-md-offset-2 col-md-10">
<input type="submit" value="Create" class="btn btn-default" />
</div>
</div>
</div>
}
<div>
@Html.ActionLink("Back to List", "Index")
</div>
<script src="~/Scripts/jquery-1.10.2.min.js"></script>
<script src="~/Scripts/jquery.validate.min.js"></script>
<script src="~/Scripts/jquery.validate.unobtrusive.min.js"></script>
接着修改一下布局页：
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>@ViewBag.Title - My ASP.NET Application</title>
<link href="~/Content/Site.css" rel="stylesheet" type="text/css" />
<link href="~/Content/bootstrap.min.css" rel="stylesheet" type="text/css" />
<script src="~/Scripts/modernizr-2.6.2.js"></script>
</head>
<body>
<div class="navbar navbar-inverse navbar-fixed-top">
<div class="container">
<div class="navbar-header">
<button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse">
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
@Html.ActionLink("Application name", "Index", "Home", new { area = "" }, new { @class = "navbar-brand" })
</div>
<div class="navbar-collapse collapse">
<ul class="nav navbar-nav">
@Html.ActionLink("Student List","Index")
@Html.ActionLink("Add Student ", "AddStudent")
</ul>
</div>
</div>
</div>
<div class="container body-content">
@RenderBody()
<hr />
<footer>
<p>© @DateTime.Now.Year - My ASP.NET Application</p>
</footer>
</div>
<script src="~/Scripts/jquery-1.10.2.min.js"></script>
<script src="~/Scripts/bootstrap.min.js"></script>
</body>
</html>
修改一下默认路由：
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using System.Web.Routing;
namespace PagingAndSortingInMVC
{
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
routes.MapRoute(
name: "Default",
url: "{controller}/{action}/{id}",
defaults: new { controller = "Student", action = "Index", id = UrlParameter.Optional }
);
}
}
}

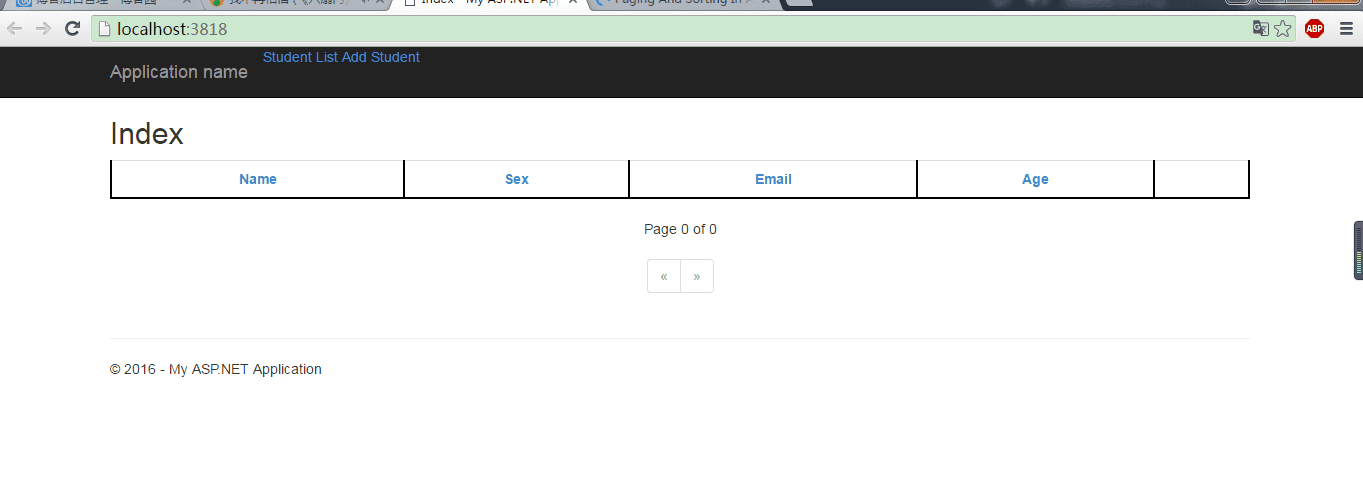

运行项目：
刚开始没有任何数据，我们添加几条测试数据：
我们来验证一下，结果：
看到了么，点击相应的列标题就可以进行排序了。分页也实现了。当然分页的样式可以通过改变这个选项：
@Html.PagedListPager(Model, page => Url.Action("Index", new { page}),PagedListRenderOptions.Classic)
这里，我修改了一下
@Html.PagedListPager(Model, page => Url.Action("Index", new { page}),PagedListRenderOptions.TwitterBootstrapPager)
分页控件的效果就是这样了。
好了，这篇文章到此结束。
总结：分页和排序是很重要的功能，需要熟练掌握。
