ASP.NET DataGrid固定标题栏介绍

2016-08-31 11:28:38 来源:www.45fan.com 【

ASP.NET DataGrid固定标题栏介绍

原文章URL:http://www.codeproject.com/aspnet/FreezePaneDatagrid.asp




Introduction

During a recent project, I was asked to make the DataGrid behave like an Excel freeze pane. That’s right; freeze the header row and freeze the left column of a DataGrid. After several hours of searching for someone that has done this and posted the code, I gave up and tried to figure out a solution myself. The project source code above provides three ASPX files. One to lock the column(s) from the client side, one to lock the column(s) from the server side, and one to lock the column from the server side and then unlock/lock the column from the client side.

Background

The plan is actually fairly simple. While browsing the net for a solution, I found a great article on how to create a freeze pane from an HTML table. The solution is CSS based and only works with Internet Explorer, but does degrade well in other browsers. I would like to thank Brett Merkey for providing this solution. His ‘Lock or Freeze Columns with Non-scroll headers’ provided me with the idea and can be viewed here.

The solution is fairly simple, and in the end, you will have two different ways to lock the DataGrid columns.

Here is a synopsis of what we will be doing to create the freeze pane effect:


  • Creating a simple DataGrid with data surrounded by a tag.
  • Modifying the DataGrid to render tags inside the header row.
  • Creating a style sheet that will lock the DataGrid header row and column(s).
  • Locking the column(s) from the client side.
  • Locking the column(s) for the server side.

Using the code

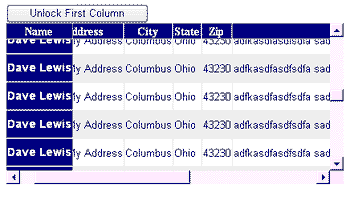

ASP.NET DataGrid固定标题栏介绍

Modifying the DataGrid to render

  tags

The first problem that we run into is that the DataGrid does not render the

  element but rather the common   element in the header. Luckily for us, Microsoft put out a rather obscure hotfix for this. Most of us have already downloaded this hotfix without knowing it. You can view more information (or download it if you have not done so yet) here.

Among other things, this hotfix adds the property UseAccessibleHeader to the DataGrid. This property, when set to true, ‘renders DataGrid table headers in

  tags with a scope="col" attribute.’

The finished DataGrid code will look something like this:

ASP.NET DataGrid固定标题栏介绍 Collapse

Creating the style sheet

The style sheet is the key to this project. There are two things that need to be noted. First, CSS expressions are used. CSS expressions were introduced in Internet Explorer 5.0, and it allows you to assign a JavaScript expression to a CSS property. In this case, we are setting the horizontal and vertical scrolling position of the document elements by using expressions. Second, there is a certain order in which the styles need to be set. If you change the order of the styles listed below, you will come up with some rather odd results. And in case you’re wondering… yes I went through almost every incorrect order before actually coming up with an order that works.

Here is the CSS code:

ASP.NET DataGrid固定标题栏介绍 Collapse
/* Div container to wrap the datagrid */
div#div-datagrid {
width: 420px;
height: 200px;
overflow: auto;
scrollbar-base-color:#ffeaff;
}

/* Locks the left column */
td.locked, th.locked {
font-size: 14px;
font-weight: bold;
text-align: center;
background-color: navy;
color: white;
border-right: 1px solid silver;
position:relative;
cursor: default;
/*IE5+ only*/
left: expression(document.getElementById("div-datagrid").scrollLeft-2);
}

/* Locks table header */
th {
font-size: 14px;
font-weight: bold;
text-align: center;
background-color: navy;
color: white;
border-right: 1px solid silver;
position:relative;
cursor: default;
/*IE5+ only*/
top: expression(document.getElementById("div-datagrid").scrollTop-2);
z-index: 10;
}

/* Keeps the header as the top most item. Important for top left item*/
th.locked {z-index: 99;}

/* DataGrid Item and AlternatingItem Style*/
.GridRow {font-size: 10pt; color: black; font-family: Arial;
       background-color:#ffffff; height:35px;}
.GridAltRow {font-size: 10pt; color: black; font-family: Arial;
       background-color:#eeeeee; height:35px;}

Locking the column(s) from the client side

In order to lock the column from the client side, we just need to create a script that changes the style of the first column to ‘locked’. Multiple columns can be frozen just by modifying the code below. The following script is added to the head of the ASPX file to lock the first column.

function lockCol(tblID) {
 var table = document.getElementById(tblID);
 var button = document.getElementById('toggle');
 var cTR = table.getElementsByTagName('tr'); //collection of rows

 if (table.rows[0].cells[0].className == '') {
  for (i = 0; i < cTR.length; i++)
  {
  var tr = cTR.item(i);
  tr.cells[0].className = 'locked'
  }
  button.innerText = "Unlock First Column";
 } else {
  for (i = 0; i < cTR.length; i++)
    {
  var tr = cTR.item(i);
  tr.cells[0].className = ''
  }
  button.innerText = "Lock First Column";
 }
}

Locking the column(s) from the server side

Again, in order to lock the column from the server side, we just need to change the style of the first column to ‘locked’. In order to implement this, we use the ItemDataBound method of the DataGrid. The following code sets the style of the first column to ‘locked’. This is actually extremely simple with the code below:

Sub Item_Bound(ByVal sender As Object, ByVal e As DataGridItemEventArgs) _
Handles DataGrid1.ItemDataBound
  e.Item.Cells(0).CssClass = "locked"
End Sub

And to freeze the first two columns, it's just as easy:

Sub Item_Bound(ByVal sender As Object, ByVal e As DataGridItemEventArgs) _
Handles DataGrid1.ItemDataBound
  e.Item.Cells(0).CssClass = "locked"
  e.Item.Cells(1).CssClass = "locked"
End Sub
