Step 4:振动马达&主板 功能 标识

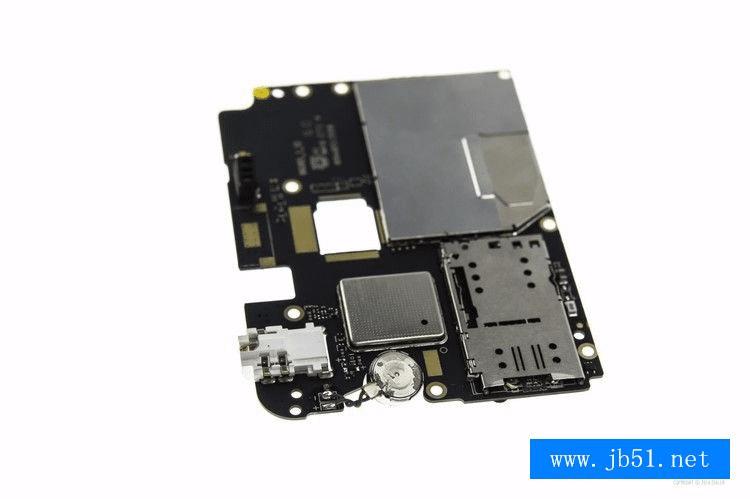

▲振动马达为扁平马达,规格为0828,
马达采用焊线方式连接,不利于售后维修。

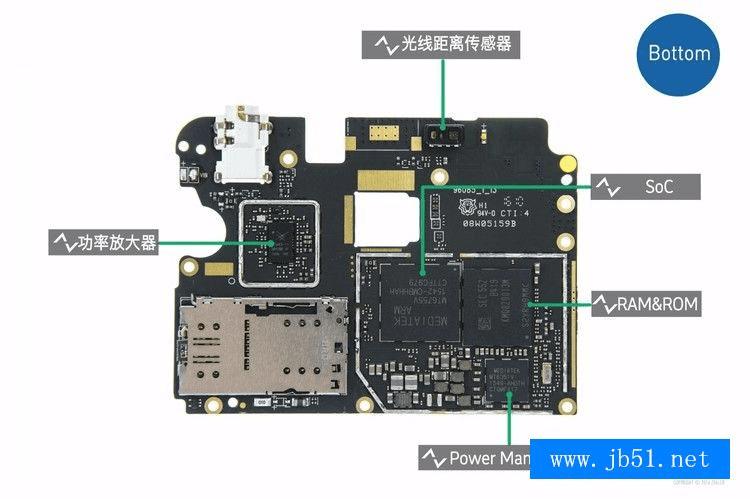

SoC: CPU:MTK, MT6755V ,8-core ,64-bit,Cortex-A53,Main Frequency 2GHz
GPU:Mali-T860,Dual core 64 bit,700MHz
RAM & ROM: SEC 552 B419 KMQ820013M
eMMC 32GB LPDDR3 16Gb with 1600Mbps of eMMC Based MCP
功率放大器: Skyworks 77643-11 高集成放大芯片,支持 WIFI/WCDMA//TD-SCDMA/FDD/TDD 信号放大
Power Management: MTK MT6351V

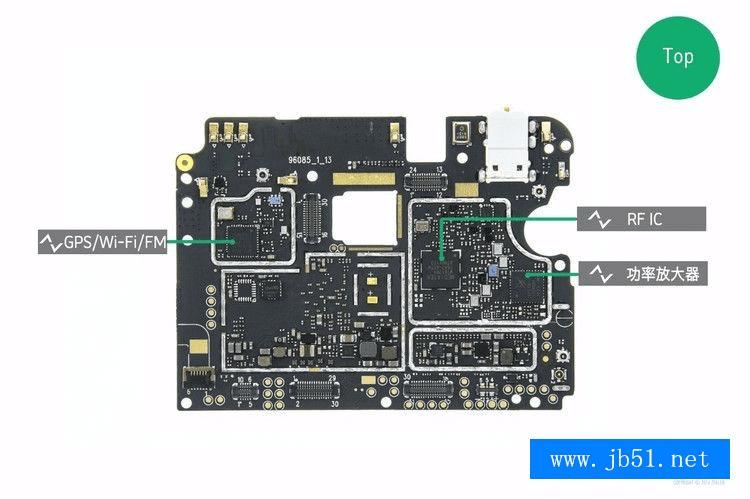

RF IC:MTK,MT6176V
功率放大器:Skyworks 77916-11
GPS/Wi-Fi/FM IC: MTK MT6625LN GPS GLONASS / BLE WiFi 802.11 / WLAN RF
